DIN Rail Power Supplies install on metal standard DIN rail, commonly used for mounting circuit breakers and industrial control equipment inside industrial equipment. These power supplies come in varying Voltage and Wattages to ensure that the product offering fulfills all of your needs. With a high reliability and compact size, they are an excellent choice for any space-critical applications where a mountable AC-DC converter is required. This power supply also contains a universal AC input and a short circuit, overload, and over voltage protection. Additionally, LED Indicators on the power supply indicates output voltage status. The enclosure is UL compliant fully isolated plastic and made with a slim design with a total product weight of only .35 lbs. This device also operates in extended temperatures from -20°- 70° C. We offer large selection of DIN Rail Power supplies for automation, industrial and process control applications.
DIN RAIL POWER SUPPLIES

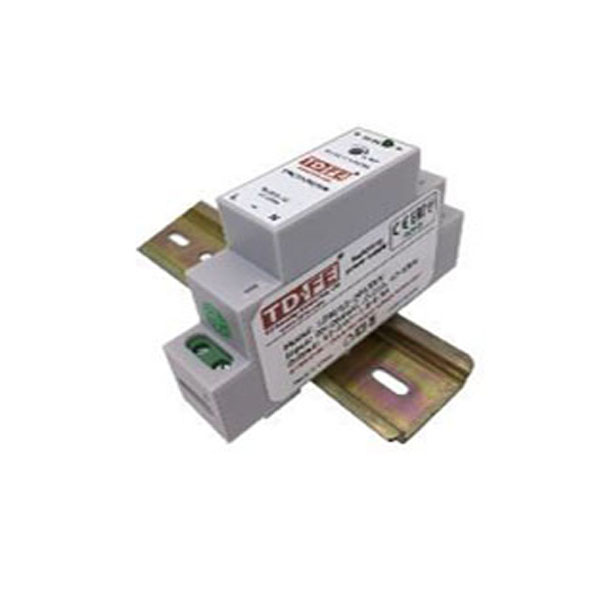

12W/12-24V/DIN
CE, EAC Certified.
Can be installed on DIN rail TS-35/7.5 or 15.
Universal input, wide range: 100-240 VAC/±120-370VDC.
Automatic Protection: Short Circuit, Overload.
LED indicators for power ON.
Rated Power: 12W.
Rated DC voltage/Current: Adjustable Range 12-24V/1,0 – 0,5 A.
Maximum DC voltage range: 11,5 – 24,5 V.

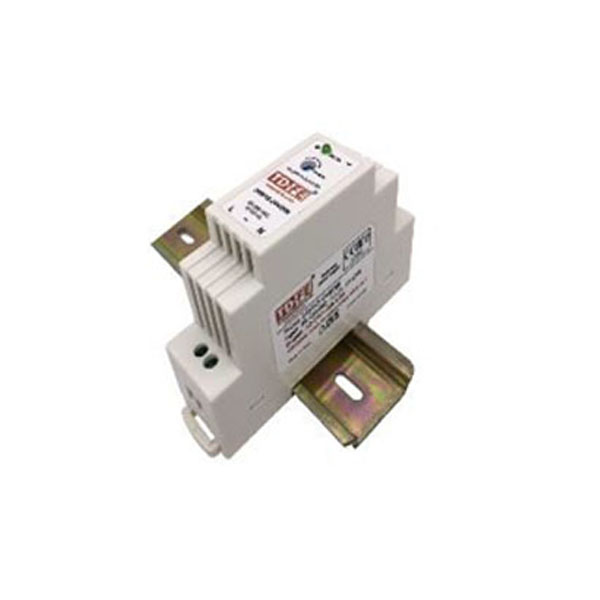

24W/12-24V/DIN
CE, EAC Certified.
Can be installed on DIN rail TS-35/7.5 or 15.
Universal input, wide range: 100-240 VAC/±120-370VDC.
Automatic Protection: Short Circuit, Overload.
LED indicators for power ON.
Rated Power: 24W.
Rated DC voltage/Current: Adjustable Range 12-24V/2,0 – 1,0 A.
Maximum DC voltage range: 11,5 – 24,5 V.

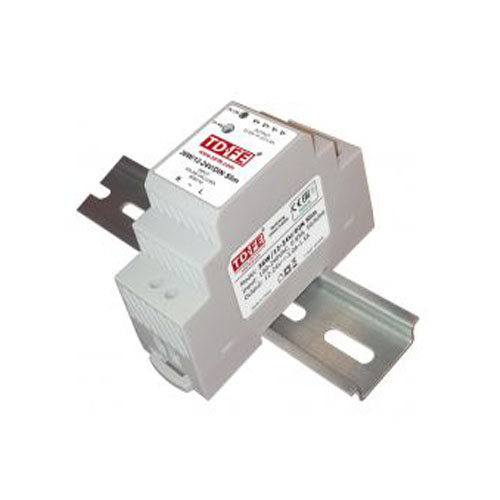

36W/12-24V/DIN Slim
CE, EAC Certified.
Can be installed on DIN rail TS-35/7.5 or 15.
Universal input, wide range: 100-240 VAC/±120-370VDC.
Automatic Protection: Short Circuit, Overload.
LED indicators for power ON.
Rated Power: 36W.
Rated DC voltage/Current: Adjustable Range 12-24V/3,0 – 1,5 A.
Maximum DC voltage range: 11,5 – 24,5 V.
75W/12-24V/DIN
CE, EAC Certified.
Can be installed on DIN rail TS-35/7.5 or 15.
Universal input, wide range: 100-240 VAC/±120-370VDC.
Automatic Protection: Short Circuit, Overload.
LED indicators for power ON.
Rated Power: 75W.
Rated DC voltage/Current: Adjustable Range 12-24V/6,25 – 3,15A
Maximum DC voltage range: 11,5 – 24,5 V.
120W/24V/DIN
CE, EAC Certified.
Can be installed on DIN rail TS-35/7.5 or 15.
Automatic Protection: Short Circuit, Overload.
LED indicators for power ON.
Rated Power: 120W.
Rated DC voltage/Rated Current: 24V/5A.
Maximum DC voltage range: 22 – 26V.
Voltage ripple and noise ≤0,5 %
240W/48V/DIN
CE, EAC Certified.
Can be installed on DIN rail TS-35/7.5 or 15.
Model available with Industrial Design.
Automatic Protection: Short Circuit, Overload.
LED indicators for power ON.
Rated Power: 240 W.
Rated DC Voltage/Current: 48V/5A.
Maximum DC voltage range: 47 – 56V.
DIN RAIL BACK-UP POWER SUPPLIES (UPS)
UPS 30W Simple
DIN-Rail Mounting.
Automatic protection: overload, short circuit, wrong polarity battery connection, battery deep discharge.
Battery hot swapping.
DC voltage (AC mode): 13,8 V ± 2%
DC voltage (Battery mode): 10,3 – 13,8 V
Rated current: 2A/30W
Maximum current (AC mode): 2,2 A
Maximum current (Battery mode):2,2A
Battery charge current: 0,5 A
UPS 30W/24V Simple
DIN-Rail Mounting.
Automatic protection: overload, short circuit, wrong polarity battery connection, battery deep discharge.
Battery hot swapping.
DC voltage (AC mode): 27,4 V ± 2%
DC voltage (Battery mode): 20,8 – 27,6 V
Rated current: 1A/30W.
Maximum current (AC mode): 1.1 A
Maximum current (Battery mode):1.1A
Battery charge current: 0,3 A
UPS 75W Simple
DIN-Rail Mounting.
Automatic protection: overload, short circuit, wrong polarity battery connection, battery deep discharge.
Battery hot swapping.
DC voltage (AC mode): 13,8 V ± 2%
DC voltage (Battery mode): 10,3 – 13,8 V
Rated Current: 5A/75W
Maximum current (AC mode): 5,2 A
Maximum current (Battery mode):5,2A
Battery charge current: 1,0 A
UPS 30W/DIN
Miniature plastic housing for DIN-Rail mounting.
Automatic protection: overload, short circuit, battery deep discharge, wrong polarity battery connection.
Battery hot swapping.
DC voltage (AC mode): 13,6 ± 0,2 V
DC voltage(Battery mode):10,5-13,6V
Rated current: 2A/30W
Maximum current (AC mode): 2,1 A
Maximum current (Battery mode):2,2A
Battery charge current: 0,5 A
UPS 300W/48V/DIN
Automatic protection: overload, short circuit, battery deep discharge.
Battery hot swapping
DC voltage (AC mode): 55,2 V (adjust. 48 – 55,5 V)
DC voltage (Battery mode): 40,0 – 55,2 V
Rated Current: 4,5 A/300W
Maximum current (AC mode): 4,6 A
Maximum current (Battery mode): 4,7A
Battery charge current, max.: 1,0 A
