UHF Reader & Accessories
Radio-frequency identification (RFID) uses electromagnetic fields to automatically identify and track tags attached to objects. An RFID tag consists of a tiny radio transponder; a radio receiver and transmitter. When triggered by an electromagnetic interrogation pulse from a nearby RFID reader device, the tag transmits digital data, usually an identifying inventory number, back to the reader. This number can be used to inventory goods. There are two types. Passive tags are powered by energy from the RFID reader’s interrogating radio waves. Active tags are powered by a battery and thus can be read at a greater range from the RFID reader; up to hundreds of meters. Unlike a barcode, the tag doesn’t need to be within the line of sight of the reader, so it may be embedded in the tracked object. RFID is one method of automatic identification and data capture (AIDC).

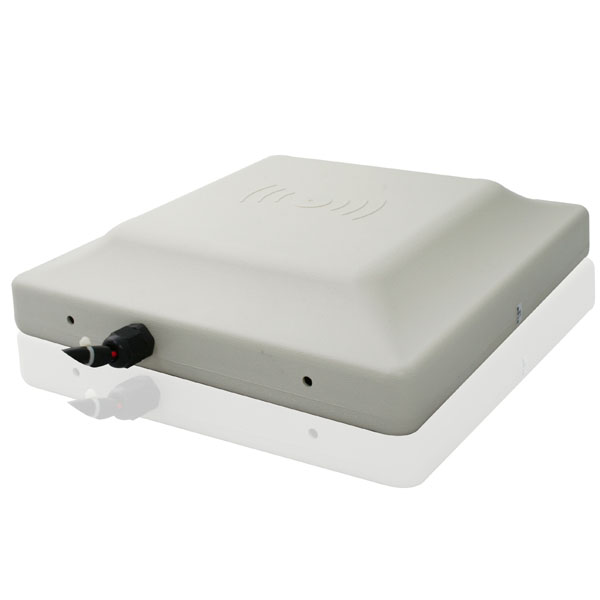

FX-2020U
TRA Authorized UHF Long Range Reader
Frequency Range: 865 – 868MHz, European Standard (CE)
Reading Distance: 4 to 8M
Linear polarization antenna
UHF-C
UHF Long Range Card
Nature of work: Passive tag
Working frequency band: 865-928MHz
Recognition distance: >5M(Depending on the antenna,865-928MHz)
UHFMF
Dual Frequency Card (UHF + Mifare)
Nature of work: Passive tag
Working frequency band: 865-928MHz +13.56MHz
Recognition distance: >5M(865-928MHz) Depends on reader

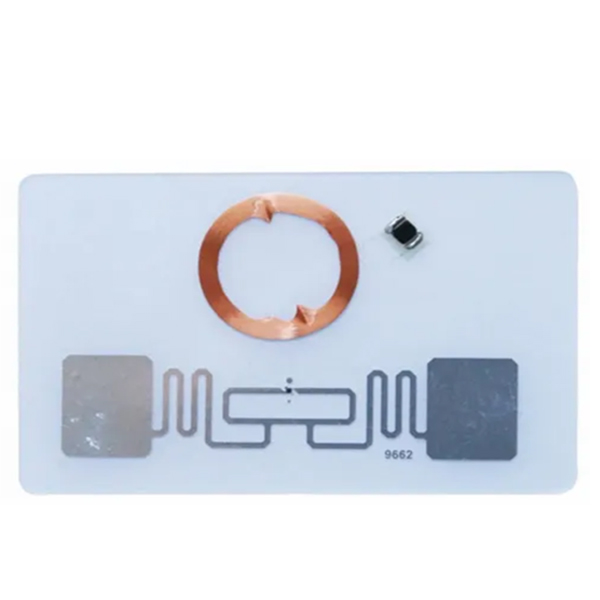

UHFEM
Dual Frequency Card (UHF + EM)
Nature of work: Passive tag
Working frequency band: 865-928MHz + 125KHz
Recognition distance: >5M(865-928MHz), Depends on reader
UHF-S
UHF Adhesive Label
Operating Mode – Passive tag
Apply carrier wave frequency: 865-928MHz
Recognition distance: >5M(Depending on the antenna,865-928MHz)
